Overview：

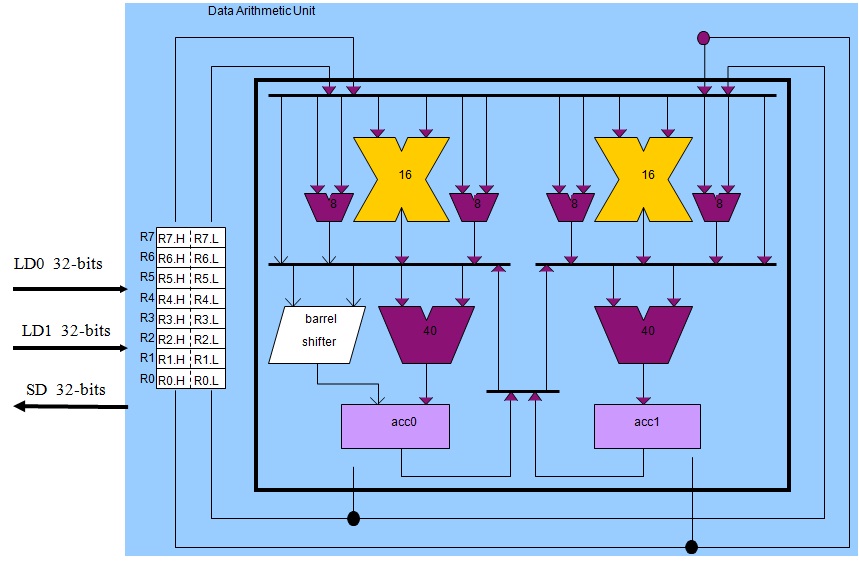

    The shifter performs bitwise shifting for 16-bit, 32-bit or 40-bit inputs and yields 16-bit, 32-bit, or 40-bit outputs.



    Functions

• Arithmetic Shift:

    The Arithmetic Shift instruction shifts a registered number a specified distance and direction while preserving the sign of the original number.

    The sign bit value back-fills the left-most bit positions vacated by the arithmetic right shift.

• Logical Shift:

    The Logical Shift instruction logically shifts a registered number a specified distance and direction.

    Logical shifts discard any bits shifted out of the register and backfill vacated bits with zeros.



    英文没意思，下一章开始，正式中文加视频讲解，详细说说Blackfin的外设。
