BF518 Blackfin处理器开发方案

[ 作者：admin ] [ 来源：ADSP开源社区 ] [ 发布时间：2012-8-23 ]

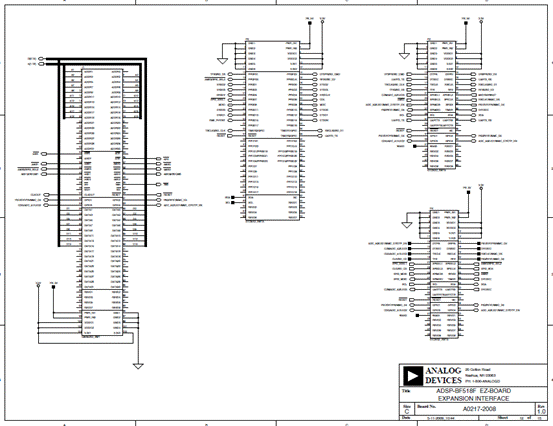

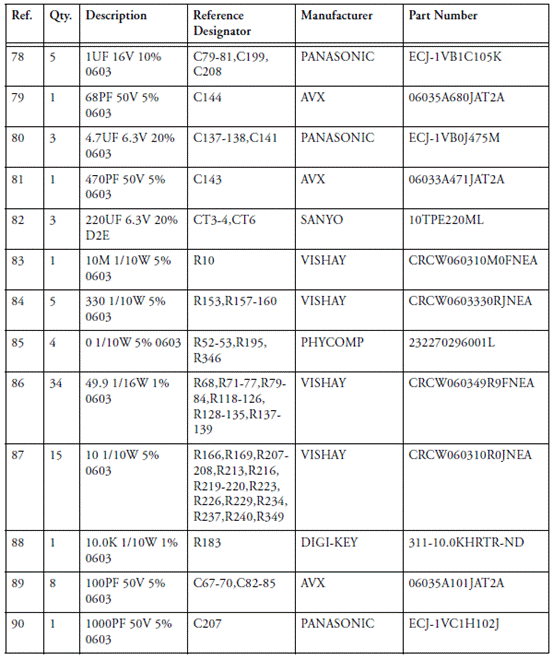

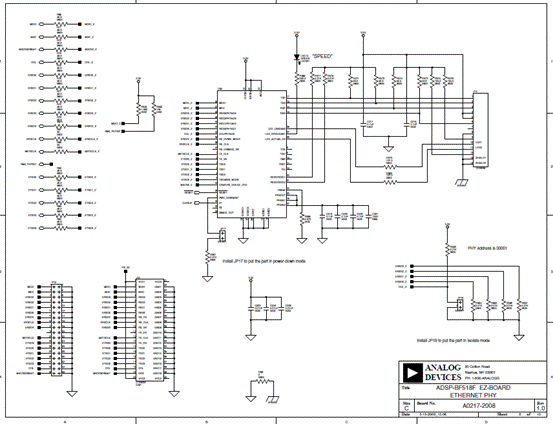

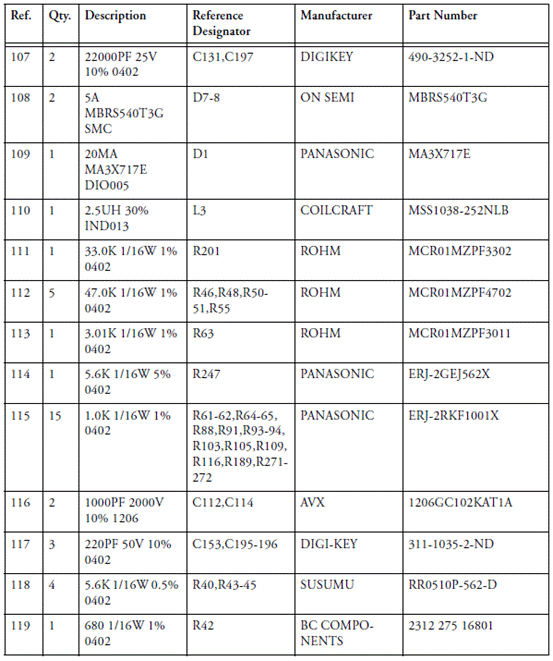

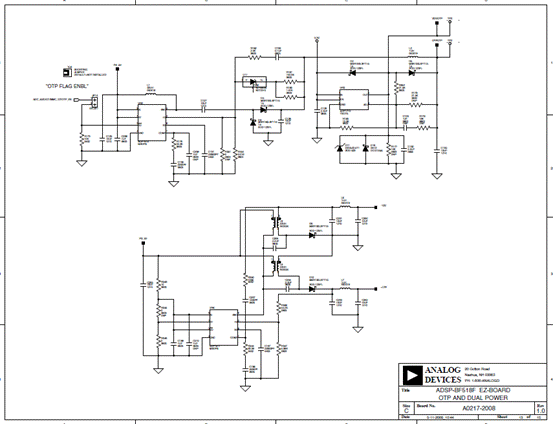

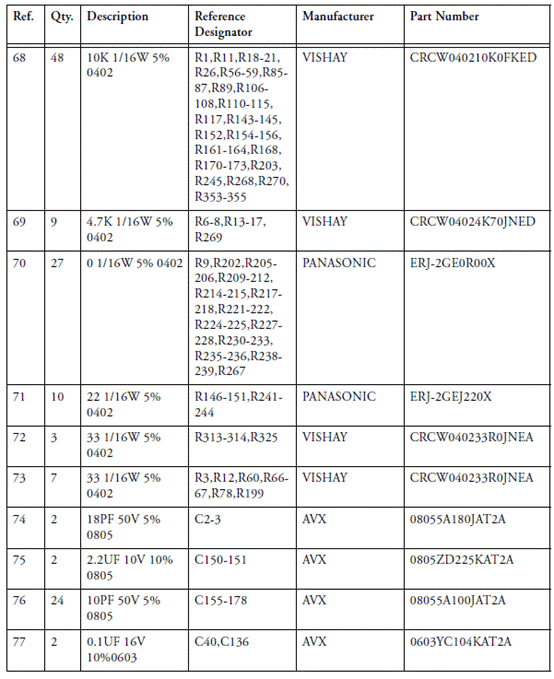

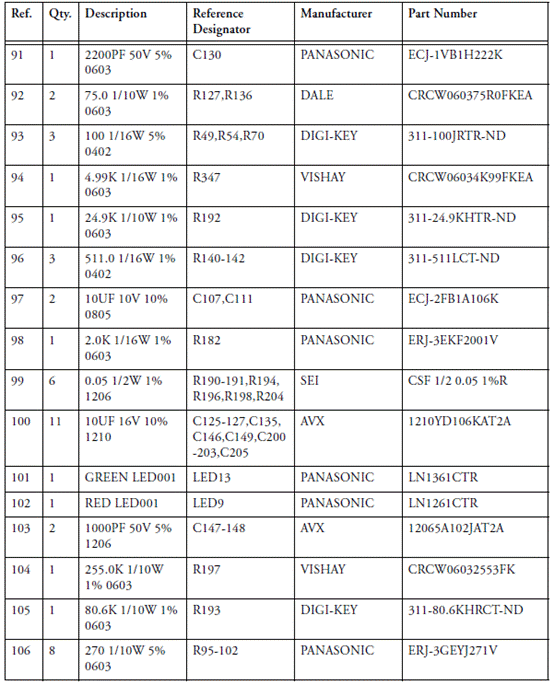

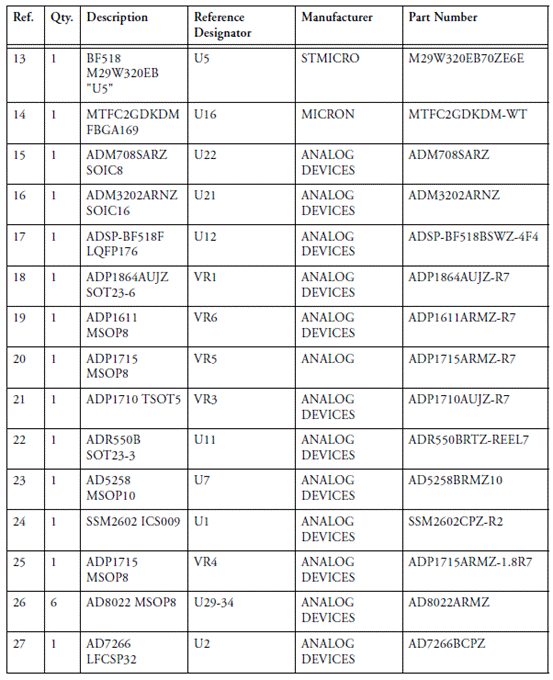

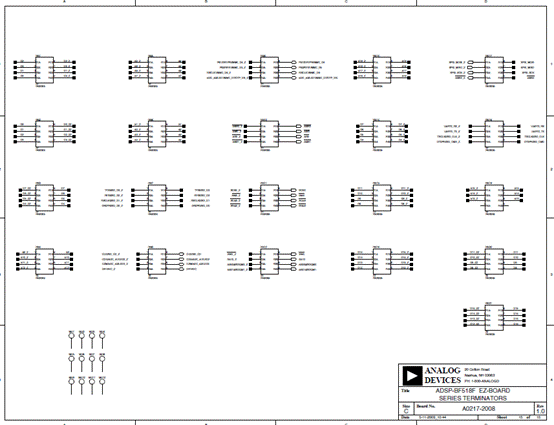

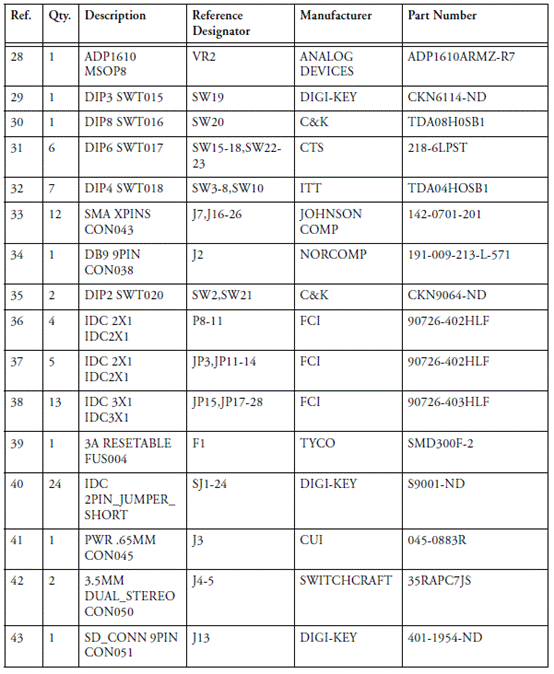

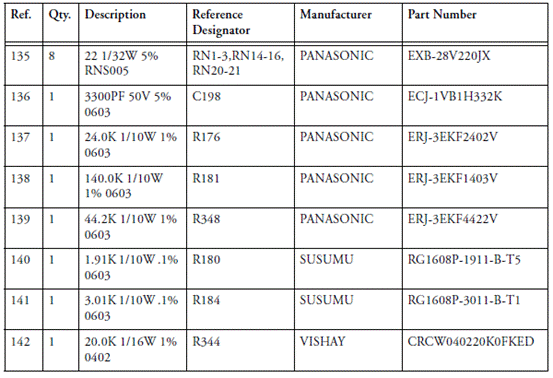

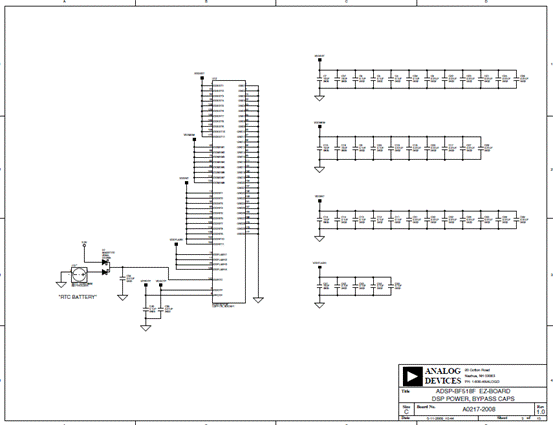

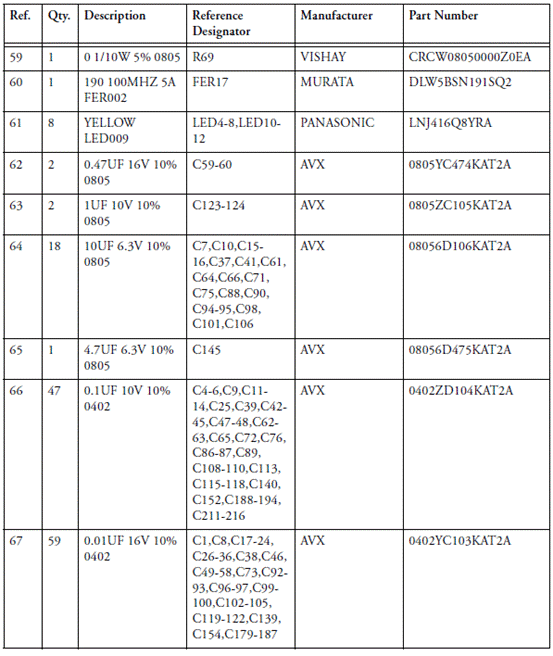

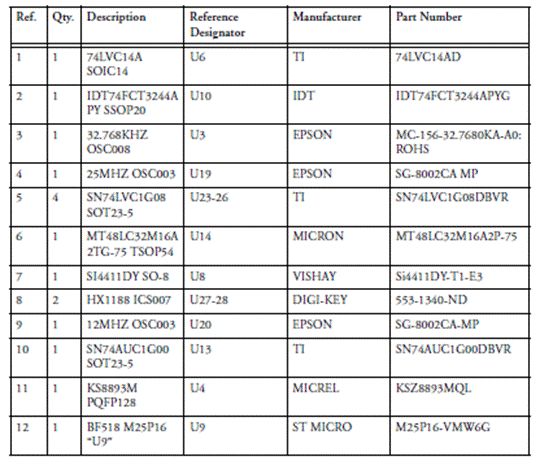

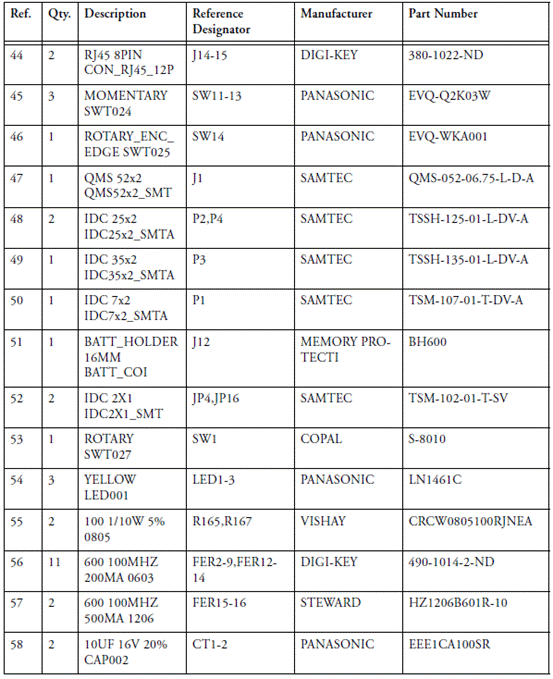

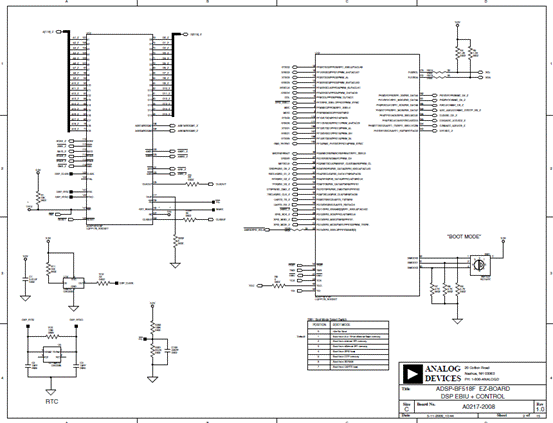

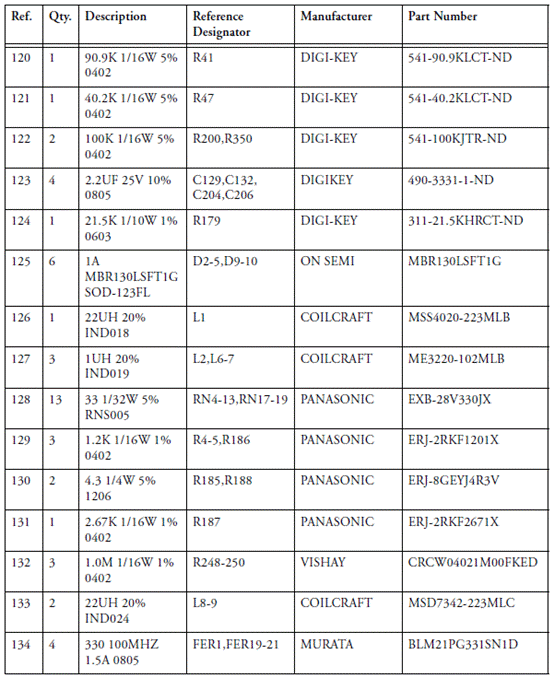

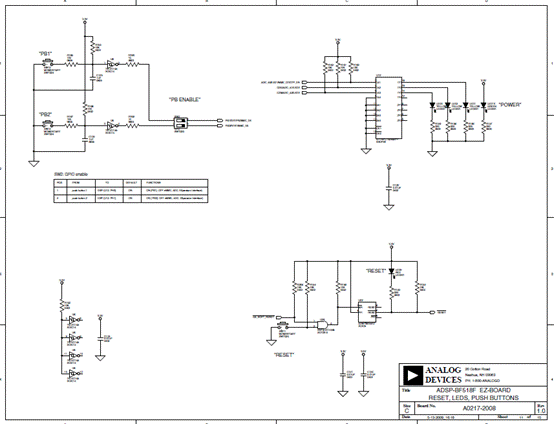

ADI公司的ADSP-BF518F EZ-Board评估系统是用来评估ADSP-BF518F Blackfin处理器的功能,处理器的I/O电压为3.3V,核电压由 DP1715和AD5258来控制,而Blackfin 处理器ADSPBF518F,采用ADI/Intel微信号架构(MSA),集成了双MAC信号处理引擎,具有正交RISC类微处理器指令集,单指令多数据(SIMD)多媒体功能,主要用在工业控制,马达控制,仪器仪表,Femto基站,网络音频,VoIP等领域.本文介绍了ADSP-BF518主要特性,方框图,Blackfin 处理器核框图,以及ADSP-BF518F EZ-Board评估板主要特性,方框图,电路图和材料清单.

The ADSP-BF512/ADSP-BF512F, ADSP-BF514/ADSPBF514F, ADSP-BF516/ADSP-BF516F, ADSP-BF518/ADSPBF518F processors are members of the Blackfin® family of products, incorporating the Analog Devices/Intel Micro Signal Architecture (MSA). Blackfin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single-instruction, multiple-data (SIMD) multimedia capabilities into a single instruction-set architecture.

The processors are completely code compatible with other Blackfin processors.

ADSP-BF518主要特性:

Up to 400MHz high performance Blackfin processor

Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs,40-bit shifter

RISC-like register and instruction model for ease of programming and compiler-friendly support

Advanced debug, trace, and performance monitoring

Wide range of operating voltages

Qualified for Automotive Applications

168-ball CSP_BGA or 176-lead LQFP with exposed pad

MEMORY

116K bytes of on-chip memory

External memory controller with glueless support for SDRAM and asynchronous 8-bit and 16-bit memories

Optional 4M bit SPI flash with boot option

Flexible booting options from internal SPI flash, OTP memory, external SPI/parallel memories, or from SPI/UART host devices

Code security with Lockbox secure technology

One-time-programmable (OTP) memory

Memory management unit providing memory protection

PERIPHERALS

IEEE 802.3-compliant 10/100 Ethernet MAC with IEEE 1588 support (ADSP-BF518/ADSP-BF518F only)

Parallel peripheral interface (PPI), supporting ITU-R 656 video data formats

2 dual-channel, full-duplex synchronous serial ports (SPORTs), supporting 8 stereo I2S channels

12 peripheral DMAs, 2 mastered by the Ethernet MAC

2 memory-to-memory DMAs with external request lines

Event handler with 56 interrupt inputs

2 serial peripheral interfaces (SPI)

Removable storage interface (RSI) controller for MMC, SD,

SDIO, and CE-ATA

2 UARTs with IrDA support

2-wire interface (TWI) controller

Eight 32-bit timers/counters with PWM support

3-phase 16-bit center-based PWM unit

32-bit general-purpose counter

Real-time clock (RTC) and watchdog timer

32-bit core timer

40 general-purpose I/Os (GPIOs)

Debug/JTAG interface

On-chip PLL capable of frequency multiplication

ADSP-BF518市场和应用:

VoIP

Industrial Control

Motor Control

Femto Cells

Networked Audio

Instrumentation

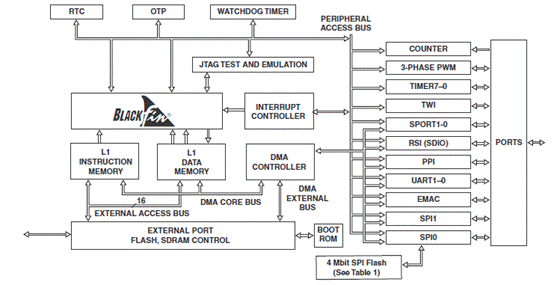

图1.ADSP-BF518方框图

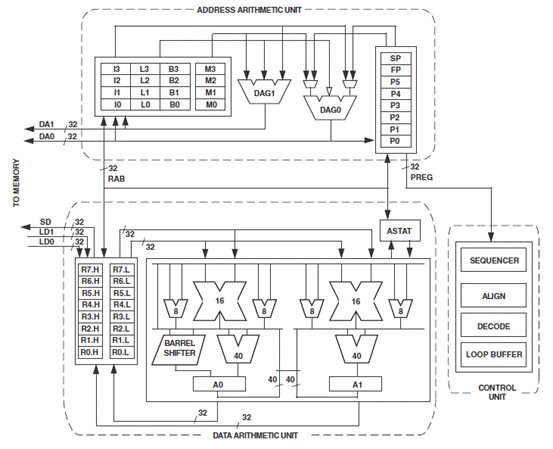

图2.ADSP-BF518 Blackfin处理器核框图

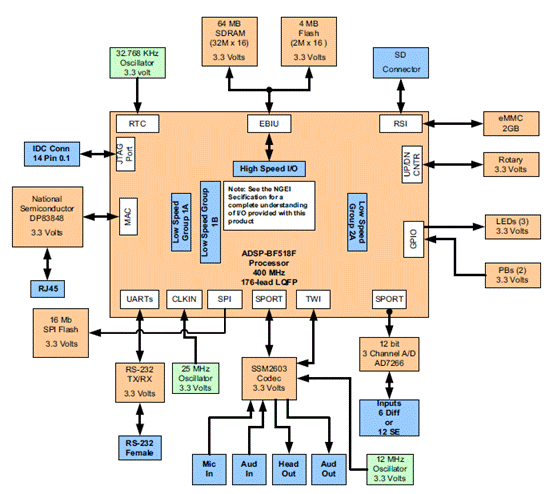

ADSP-BF518F EZ-Board评估系统

ADSP-BF518F EZ-BoardTM Evaluation System

This EZ-Board is designed to demonstrate the ADSP-BF518F Blackfin processor capabilities. The processor has an I/O voltage of 3.3V. The core voltage of the processor is controlled by an Analog Devices ADP1715 low dropout regulator (LDO) and an Analog Devices AD5258 digipot, which is configurable over the 2-wire interface (TWI) signals.

The ADSP-BF518F EZ-Board provides example programs to demonstrate the capabilities of the product.

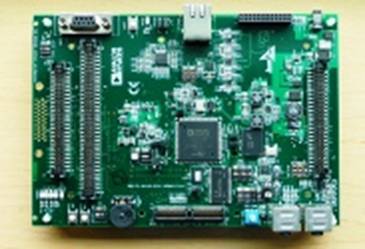

图3.ADSP-BF518F EZ-Board评估板外形图

The evaluation board is designed to be used in conjunction with the VisualDSP++® development environment to test the capabilities of the ADSP-BF512/BF512F, ADSP-BF514/BF514F, ADSP-BF516/BF516F,and ADSP-BF518/BF518F Blackfin processors. The VisualDSP++ development environment aids advanced application code development and debug, such as:

• Create, compile, assemble, and link application programs written in C++, C, and assembly

• Load, run, step, halt, and set breakpoints in application programs

• Read and write data and program memory

• Read and write core and peripheral registers

• Plot memory

ADSP-BF518F EZ-Board评估板主要特性:

• Analog Devices ADSP-BF518F Blackfin processor

􀁄 Core performance up to 400 MHz

􀁄 External bus performance up to 80 MHz

􀁄 176-pin LQFP package

􀁄 25 MHz crystal

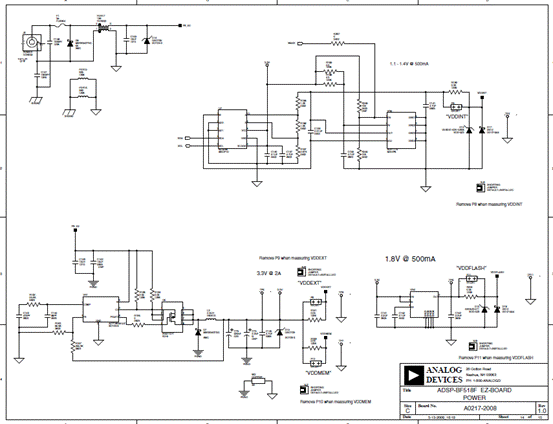

• Programmable VDDINT core power

􀁄 Analog Devices AD5258 TWI digital potentiometer

􀁄 Analog Devices ADP1715 low dropout linear regulator

• Synchronous dynamic random access memory (SDRAM)

􀁄 Micron MT48LC32M16A2TG – 64 MB (32M x 16-bits)

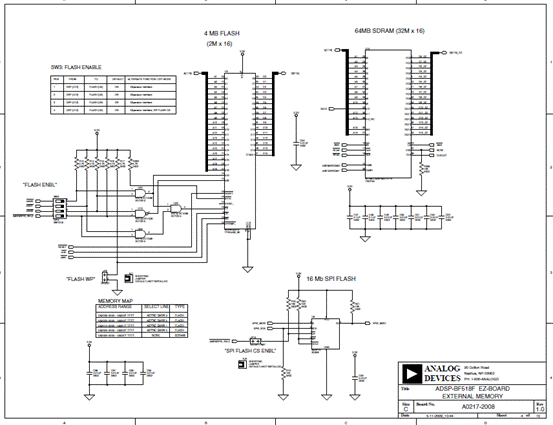

• Parallel flash memory

􀁄 Numonyx M29W320EB – 4 MB (2M x 16-bits)

• eMMC flash memory

􀁄 Micron MTFC2GDKDM – 2 GB

• SPI flash memory

􀁄 Numonyx M25P16 – 16 Mb

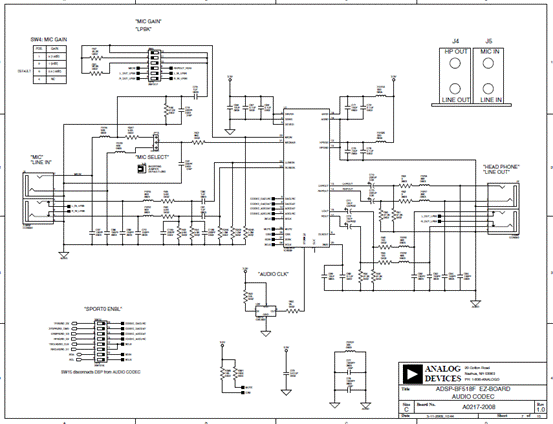

• Analog audio interface

􀁄 Analog Devices SSM2603 low-power audio codec

􀁄 One stereo LINE OUT jack

􀁄 One headphone LINE IN

􀁄 One input MIC jack

􀁄 One input stereo LINE IN jack

• Ethernet interface

􀁄 National Semiconductor DP83848 PHY device

􀁄 10-BaseT and 100-BaseTX

􀁄 Auto-MDIX

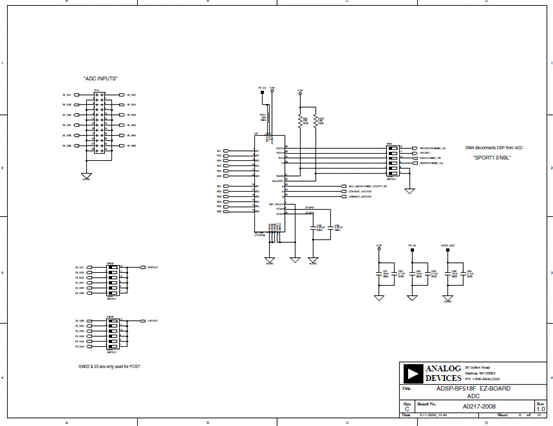

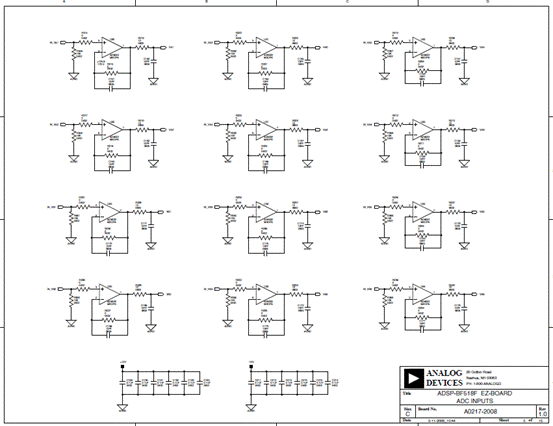

• ADC interface

􀁄 Analog Devices AD7266 2 MSPS, 12-bit, 3-channel SAR analog-to-digital converter

• Thumbwheel

􀁄 Panasonic EVQ-WKA001 rotary encoder

• Universal asynchronous receiver/transmitter (UART)

􀁄 ADM3202 RS-232 line driver/receiver

􀁄 DB9 female connector

• LEDs

􀁄 Five LEDs: one board reset (red), three general-purpose (amber), one configurable ethernet LEDs (amber) and one power (green)

• Push buttons

􀁄 Three push buttons: one reset, two programmable flags with debounce logic

• Expansion interface II

􀁄 Next generation of the expansion interface design, provides access to most of the ADSP-BF518F processor signals

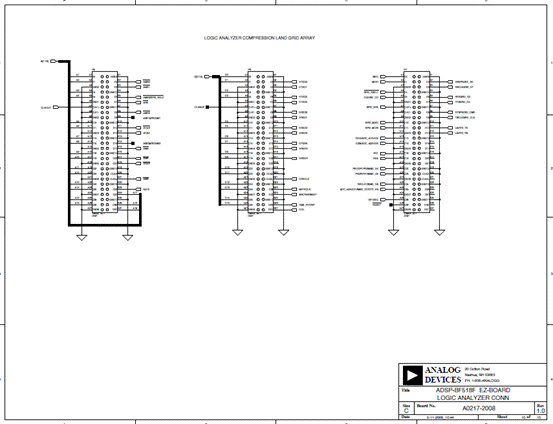

• Land grid array

􀁄 Easy probing of all port pins and most EBIU signals

• Other features

􀁄 JTAG ICE 14-pin header

􀁄 Blackfin power measurement jumpers
